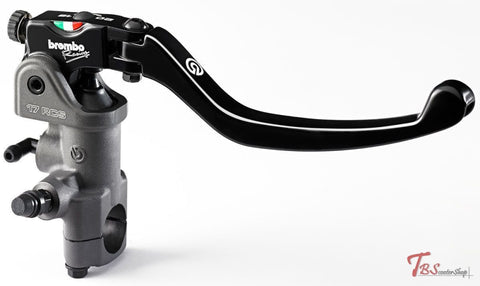

The Brembo 17RCS brake master cylinder is suited to all bikes that use a single brake disc configuration.
This brake master cylinder is universal & will adapt to most popular major bike brands without any modification. Brake lever is included.(FOLDING LONG LEVER )
MADE IN ITALY
Included accessories:
This brake master cylinder is universal & will adapt to most popular major bike brands without any modification. Brake lever is included.(FOLDING LONG LEVER )
MADE IN ITALY
Included accessories:
- Brake sensor switch * 1
- Tubing screw * 1
- Short tubing * 1
- Screw washer * 2
- Temperature sticker * 2
- Original oil cup * 1
- Oil Cup Holder * 1
- Original warranty * 1
- Instructions * 1
Technical Information
This master cylinder body is billet-machined for maximum technological expression and performance. The surface finish involves the oxidation process as used in MotoGP and Superbike sectors
- The Brembo RCS forged radial brake master cylinder offers a choice between powerful or progressive braking, depending on road conditions , weather conditions or personal rider preferences.
- Thanks to its innovative adjustment system , this patented brake master cylinder ( derived directly from MotoGP versions ) means that the same master cylinder can be adapted to different and highly demanding rider applications/conditions.
- Developed with the intention of transferring MotoGP and Superbike technology to a wider audience of enthusiats at an affordable price.
- The RCS comprises of locator whereby it is possible to change the lever ratio to 18 or 20mm.
- By changing the ratio , the brakes can be made more responsive and faster (20mm) or more modular and progresive (18mm )
- The change of configuration is very quick with the eccentric system ( red on 18mm or black on 20mm )
- A simple screwdriver can adjust the lever ratio by turning the locator on the front 180 degrees.
- This changes the braking force and feel without effecting raw power.
- The small piston , seals & cap of the RCS master cylinders are the same as used by almost all MotoGP and Superbike riders, characterised by very tight maching tolerances and optimal smoothness.
- For road use a microswitch is supplied with the RCS for the brake light illumination.
