Product Description

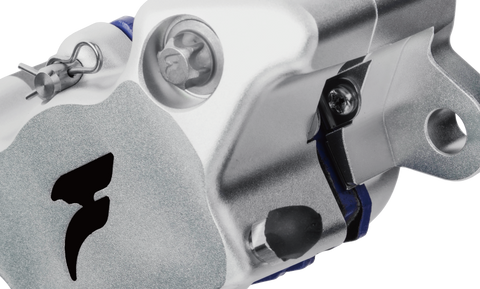

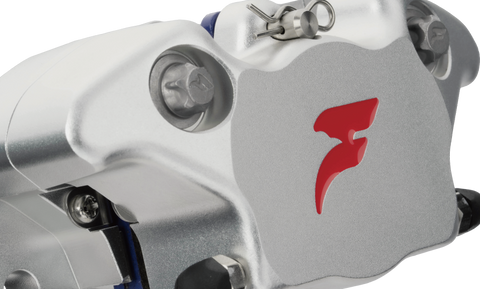

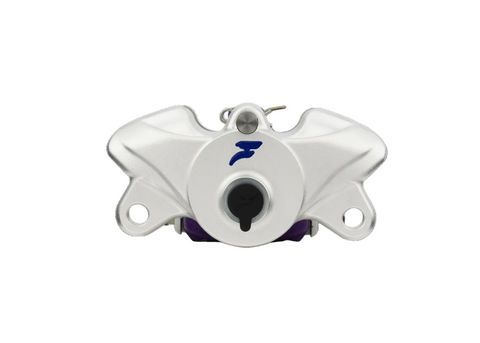

Elevate your stopping confidence and rear braking control with the Frando FCF-384 Forged Two-Piece 2-Piston Axial Brake Caliper. Engineered by Taiwan braking specialist Frando Brake System, this high-performance rear caliper features a precision-forged two-piece body structure—setting it apart from monoblock alternatives like the 684 series. While monoblock calipers focus on single-piece structure, the forged 2-piece design of the FCF-384 allows for ultimate internal fluid channel precision, optimal wall consistency, and superior structural rigidity under heavy hydraulic pressure.
Forged from aerospace-grade 6061-T6 aluminum alloy, the FCF-384 body effectively resists body flex during hard braking, ensuring every bit of master cylinder pressure is converted into instant, progressive clamping force. Weighing in at an ultralight 590 grams including brake pads, it significantly reduces unsprung weight for sharper chassis handling and quicker suspension response. Equipped with dual 34mm hard-anodized aluminum pistons, the FCF-384 offers smooth actuation and exceptional thermal stability. Perfectly styled to pair with Frando FCF-100S front radial calipers, it completes a race-inspired, aesthetically matched front-and-rear braking system.
Key Features and Performance Benefits
Forged Two-Piece 6061-T6 Construction: Built with a forged two-piece aluminum body that ensures extreme structural strength and high-precision internal fluid dynamics, offering a distinct technical layout compared to monoblock designs like the 684 series.
High-Rigidity & Flex Resistance: Forged under high pressure to withstand heavy braking loads without flexing, delivering razor-sharp, direct brake lever feedback.
Dual 34mm Hard-Anodized Pistons: Precision-machined aluminum pistons with hard-anodized surface treatment for smooth travel, reduced friction, and long-term durability.
Ultra-Lightweight Design: Weighs just 590g with pre-installed brake pads, reducing unsprung mass to optimize rear wheel traction and suspension agility.

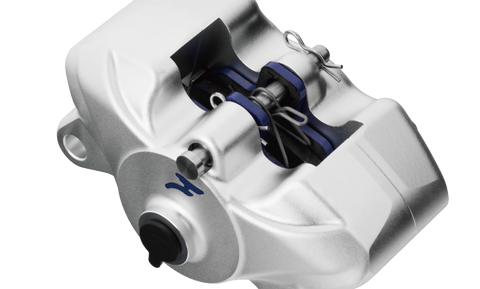

Premium Dupont Ceramic Hyper Alloy Pads Included: Pre-equipped with high-friction CT2-0077 Dupont ceramic pads for low dust, quiet operation, and strong stopping power across all temperature ranges.
Standard 84mm Axial Mounting Pitch: Universally compatible with standard 84mm rear brackets and aftermarket adapter plates.

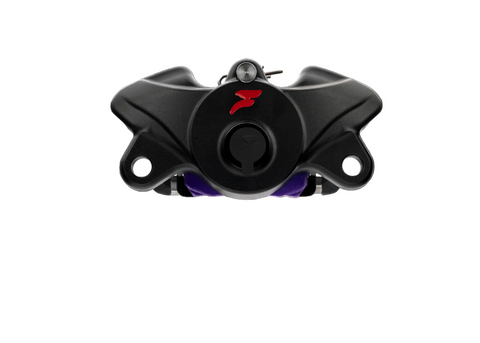

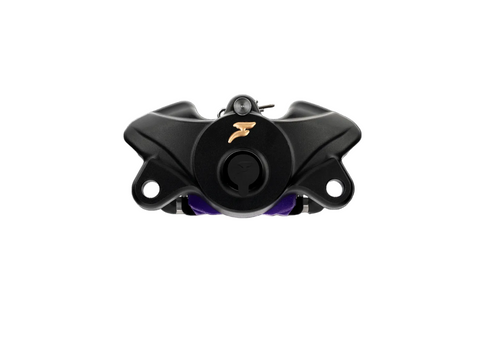

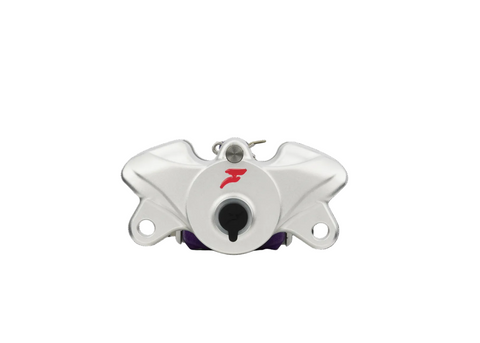

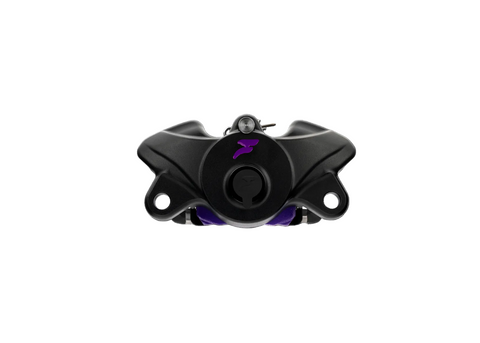

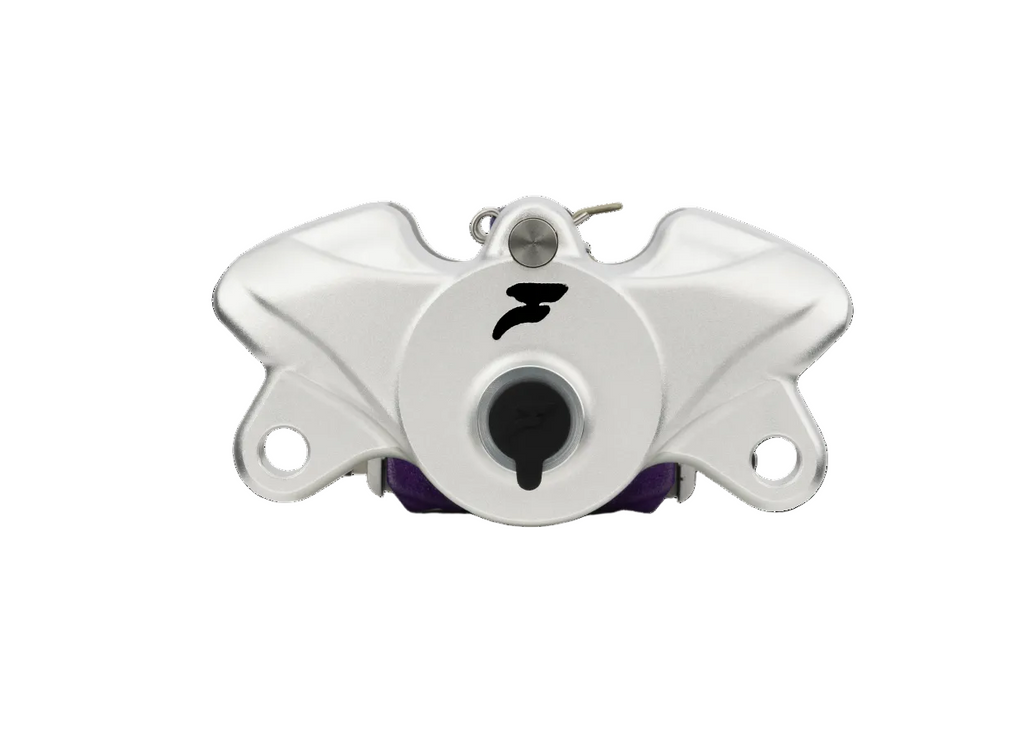

Coordinated Racing Aesthetics: Available in Silver and Black finishes, designed to visually complement Frando FCF series front calipers for a cohesive, professional build.
Specifications
Brand: Frando Brake System
Origin: Made in Taiwan
Model: FCF-384M
Caliper Type: Forged Two-Piece 2-Piston Axial Mount Caliper
Mounting Pitch: 84mm Center-to-Center
Body Material: Forged 6061-T6 Aluminum Alloy (Two-Piece Construction)
Piston Diameter: Dual 34mm P
iston Material: Hard-Anodized Aluminum Alloy
Weight: 590g (Including Brake Pads)
Brake Pad Model: CT2-0077 (Dupont Ceramic Hyper Alloy)
Bleeder Screw Specification: M6 x 1.0mm
Banjo Bolt Specification: M10 x 1.25mm
Color Options: Silver / Black
